Model TS10 Incinerator with wet scrubber (Spray Tower) and Defogging Tower

Posted on by admin


Model TS10 Incinerator with wet scrubber (Spray Tower) and Defogging Tower

Incinerator Items/Model

HICLOVER TS10(PLC)



Burn Rate (Average)

10-20 kg/hour

Feed Capacity(Average)

20kg/feeding

Control Mode

PLC Automatic

Primary Combustion Chamber

100L

Internal Dimensions

50x50x40cm

Secondary Chamber

50L

Smoke Filter Chamber

Yes

Feed Mode

Manual

Voltage

220V

Power

3.0Kw

Burner Type

Italy Brand

Oil Consumption (kg/hour)

6

N.Gas Consumption (m3n/hour)

***

Temperature Monitor

Yes

Temperature Thermometer

Corundum Probe Tube, 1400℃Rate.

Temperature Protection

Yes

Automatic Cooling

Yes

Automatic False Alarm

Yes

System Testing Model

Yes

Time Setting

Yes

Progress Display Bar

LCD Display

Oil Tank

200L

Oil Tank Stand

Yes

Liquid level Display

Yes

Feeding Door

30x30cm

Chimney

3Meter

Chimney Type

Stainless Steel 304

1st. Chamber Temperature

800℃–1000℃

2nd. Chamber Temperature

1000℃-1300℃

Residency Time

2.0 Sec.

Gross Weight

1800kg

External Dimensions

140x90x120cm(Incinerator Mainbody)

1st. Chamber Composition Hot Face

Thickness: ≥115 mm

55% of Al203

1750°C Grade

2nd. Chamber Composition Hot Face

Thickness: ≥115 mm

75% of Al203

1790°C Grade

Chamber Cold Face Material

High Rate Refractory Ceramic Fiber

Other Parts Hot Face Refractory

Heavy Duty with steel fiber

Burner operation

Automatic On/Off

Dry Scrubber

None

Wet Scrubber

Including

Top Loading Door

Optional

Paint for outside face

250°C Grade

Sealing Material

Refractory Ceramic Fiber

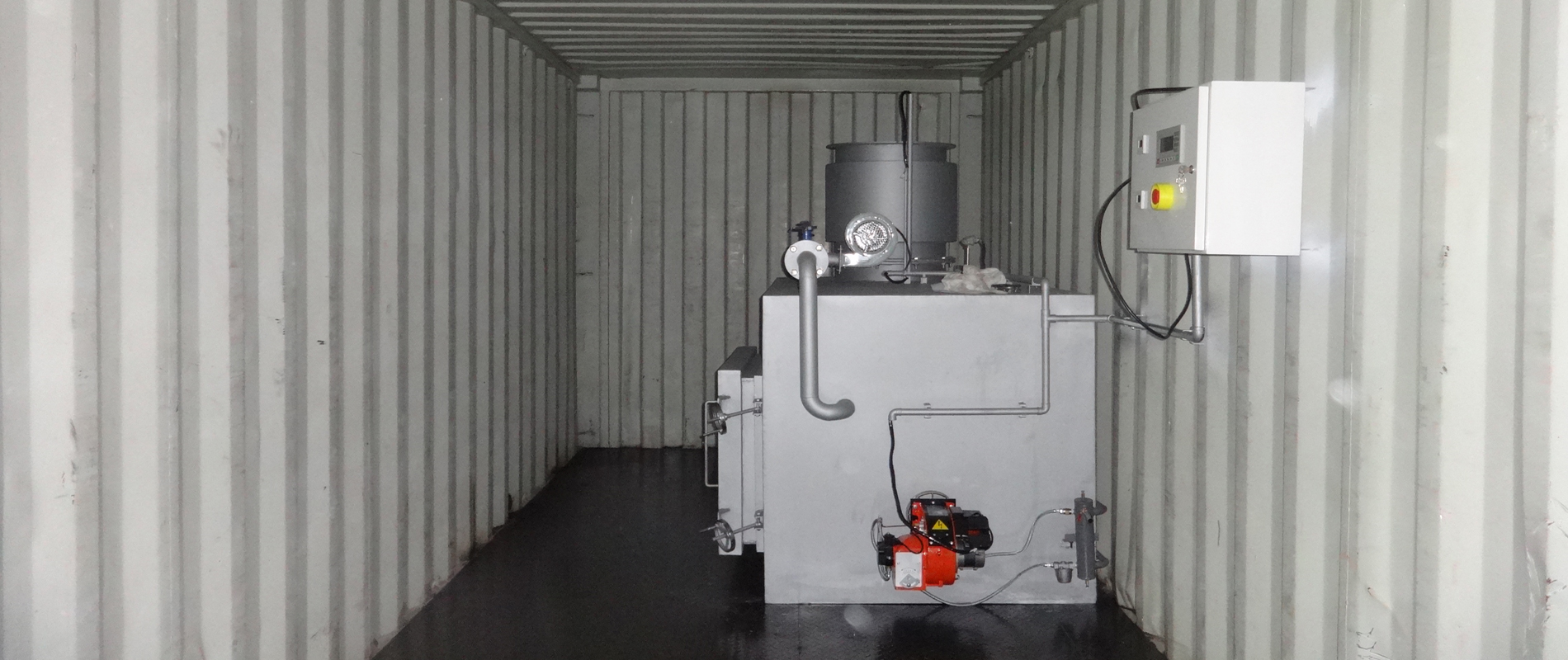

Upgrade Containerized Mobile Type

Optional

CE Certificate

CE(2006/42/EC,2014/30/EU

ISO Certificate

ISO9001:2015

High-tech Enterprise Certificate

Yes


















Nanjing Clover Medical Technology Co.,Ltd.
Ecolead Technology(Nanjing) Co.,Ltd.
Mobile: +86-13813931455(WhatsApp)

Website: www.hiclover.com
Email:     [email protected]
Email:     [email protected]

2023-06-04

HICLOVER TS10(PLC) Furnace body type Vertical closed furnace combustion chamber

Posted on by admin

Medical waste, disposable syringes, infusion sets processing, cotton yarn, the operating room, the residual limb, waste rubber gloves, protective clothing and infectious and harm venereal hospital bed supplies, general wastes

Hight Temperature Flue Gas Analysis Instrument, O2/CO/NO/NO2 parameter




Incinerator Items/Model

HICLOVER TS10(PLC)



Burn Rate (Average)

10-20 kg/hour

Feed Capacity(Average)

20kg/feeding

Control Mode

PLC Automatic

Primary Combustion Chamber

100L

Internal Dimensions

50x50x40cm

Secondary Chamber

50L

Smoke Filter Chamber

Yes

Feed Mode

Manual

Voltage

220V 2P

Power

0.5Kw

Burner Type

Italy Brand

Oil Consumption (kg/hour)

6

N.Gas Consumption (m3n/hour)

6.2-11.4

Temperature Monitor

Yes

Temperature Thermometer

Corundum Probe Tube, 1400℃Rate.

Temperature Protection

Yes

Automatic Cooling

Yes

Automatic False Alarm

Yes

pictures of 500kg per hour machine

Posted on by admin

pictures of 500kg per hour machine


Items/Model

TS500(PLC)




Principle

Medical Waste Incineration Treatment

how many burners does the primary have

Burn Rate

Average 500 kg/hour,if 500kg has 1 burner

Feed Capacity

Average 500kg/feeding

Control Mode

PLC(Programmable Logic Controller Incinerator)

Combustion Chamber

2700L

Internal Dimensions

190x120x120cm

Secondary Chamber

1300L

Smoke Filter Chamber

Yes

Feed Mode

Manual

Voltage

220V

Power

3.0Kw

Oil Consumption (kg/hour)

Average 44(DO)

Gas Consumption (m3/hour)

***

Temperature Monitor

Digital Display

Temperature Protection

Yes

Oil Tank

400L

Feed Door

90x80cm

Chimney

10Meter

Chimney Type

Stainless Steel

1st. Chamber Temperature

800℃–1000℃

2nd. Chamber Temperature

1000℃-1200℃

Residency Time

2.0 Sec.

Gross Weight

15000kg

External Dimensions

400x210x300cm(without chimney)


Nanjing Clover Medical Technology Co.,Ltd.
h. include an operator’s manual (in English and French and Spanish).
i. require minimal preprocessing i.e. there shall be no/very limited need for prior sorting, crushing or shredding.
j. be capable of handling mixed solid waste streams and incinerable hazardous wastes as indicated.
k. can accommodate large variations in waste composition and calorific value.
l. allow for batch loading
m. incorporate an Air Pollution Control System suitable for basic emission control
n. have a thermal efficiency of not less than 85%.
o. primary and secondary chambers shall preferably have rounded inside corners to avoid the formation of dead zones or cold pockets
p. have very low levels of unburned material in the slag
q. include a supplement fuel source and storage unit (e.g., diesel tank),
“r.  proposals shall include the fuel consumption at the rated capacity
be CE Certified, meet relevant British, EU or American Standards, or equivalent.

Items/Model TS10(PLC) TS20(PLC) TS30(PLC) TS50(PLC)
Burn Rate (Average) 10 kg/hour 20 kg/hour 30 kg/hour 50 kg/hour
Control Mode PLC Auto. PLC Auto. PLC Auto. PLC Auto.
Combustion Chamber 100L 210L 330L 560L
Internal Dimensions 50x50x40cm 65x65x50cm 75x75x60cm 100x80x70cm
Secondary Chamber 50L 110L 180L 280L
Smoke Filter Chamber Dry Scrubber Dry Scrubber Dry Scrubber Dry Scrubber
Feed Mode Manual Manual Manual Manual
Voltage 220V 220V 220V 220V
Power 0.75Kw 0.83Kw 0.99Kw 1.2Kw
Diesel Oil Consumption (kg/hour) Ave.8.4 Ave.10.9 Ave.13.3 Ave.16.9
Natural Gas Consumption (m3n/hour) Ave.10.1 Ave.13 Ave.16 Ave.20.2
Temperature Monitor Yes Yes Yes Yes
Temperature Protection Yes Yes Yes Yes
Items/Model TS100(PLC) TS150(PLC) TS300(PLC) TS500(PLC)
Burn Rate (Average) 100 kg/hour 150 kg/hour 300 kg/hour 500 kg/hour
Control Mode PLC Auto. PLC Auto. PLC Auto. PLC Auto.
Combustion Chamber 1200L 1500L 2000L 3000L
Internal Dimensions 120x100x100cm 150x100x100cm 170x120x100cm 210x120x120cm
Secondary Chamber 600L 750L 1000L 1500L
Smoke Filter Chamber Dry Scrubber Dry Scrubber Dry Scrubber Dry Scrubber
Feed Mode Manual Manual Manual Manual
Voltage 220V 220V 220V 220V
Power 1.38Kw 1.69Kw 2.57Kw 4.88Kw
Diesel Oil Consumption (kg/hour) Ave.20.4 Ave.24.2 Ave.33 Ave.44
Natural Gas Consumption (m3n/hour) Ave.24.5 Ave.29 Ave.39.6 Ave.52.8
Temperature Monitor Yes Yes Yes Yes
Temperature Protection Yes Yes Yes Yes











HICLOVER Solution for Fighting COVID-19, with ISO9001/CE Certification.
Medical Waste Incinerator & Auto Roll Air Filter(Air Purification)


Mobile: +86-138139 31455(WhatsApp)

Website: www.hiclover.com
Email:     [email protected]
Email:    [email protected]

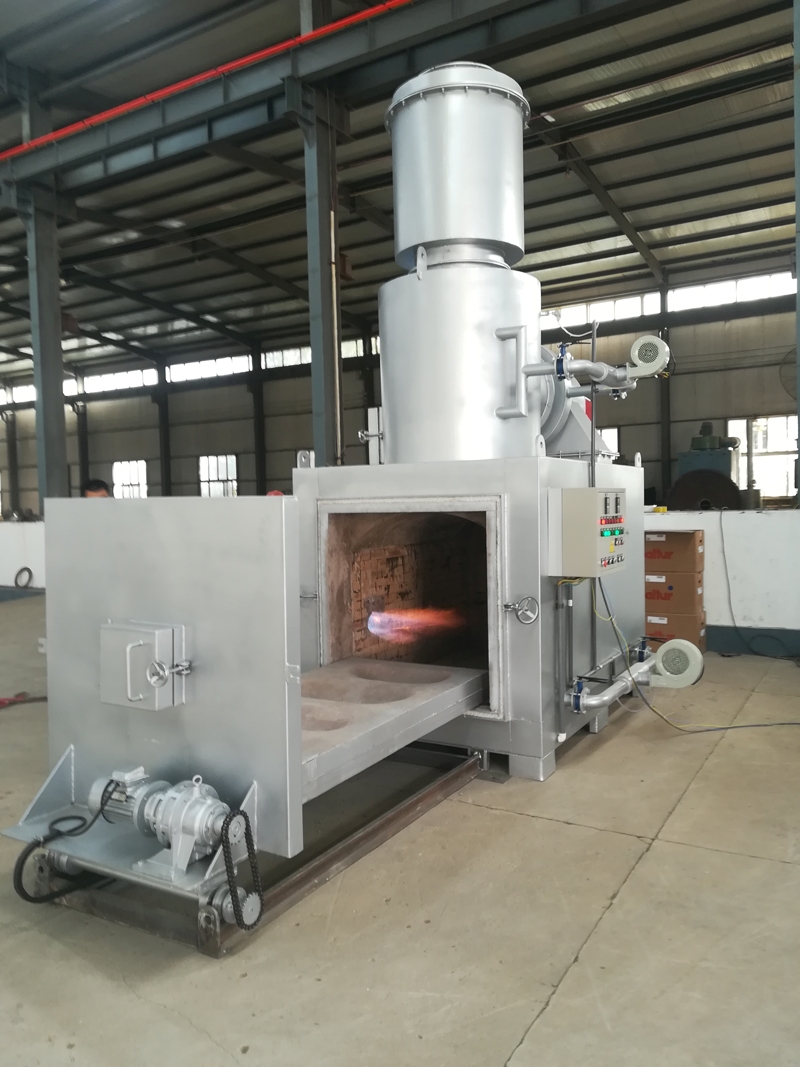

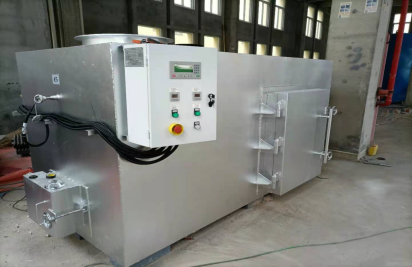

Large Capacity Animal Pet Cremation HICLOVER Model A1500 with E-Power Auto. Door

Posted on by admin
Large Capacity Animal Pet Cremation HICLOVER Model A1500 with E-Power Auto. Door

Model

A1500

Internal Dimensions

150 x 100 x 96cm

Suit for Animal

Cat – yes

Dog – yes

Pig – small

Cow – small

Main Product List

Primary Combustion Chamber

Secondary Combustion Chamber

Mix-Combustion Chamber

Smoke Filter Chamber

Incinerator Control Case

Chimney:10.0Meters

*(upgrade to Stainless Steel, free cost)

Italy oil/gas burner: 03 sets

Oil Tank (if oil fuel): 500Liters

Design for Pets Cremation Business

Movable platform & Auto. Door & Fire/Flame Checking Hole

Independent Position for Small Pet





















HICLOVER – Medical Environmental



Waste Incinerators
Medical Waste Incinerator
Pet Animal Cremation
Solid Waste Incinerator

Tel:  +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Nanjing Clover Medical Technology Co.,Ltd.



2020-06-28

ES Fiber Production Line and 400mm Melt blown Production Line and 1600mm Melt blown Production Line and and N95 Mask Machine and Disposable Mask Machine

Posted on by admin

1. N95 and Disposable Mask Machine



2. 400mm and 1600mm Melt blown Production Line

3. ES Fiber Production Line

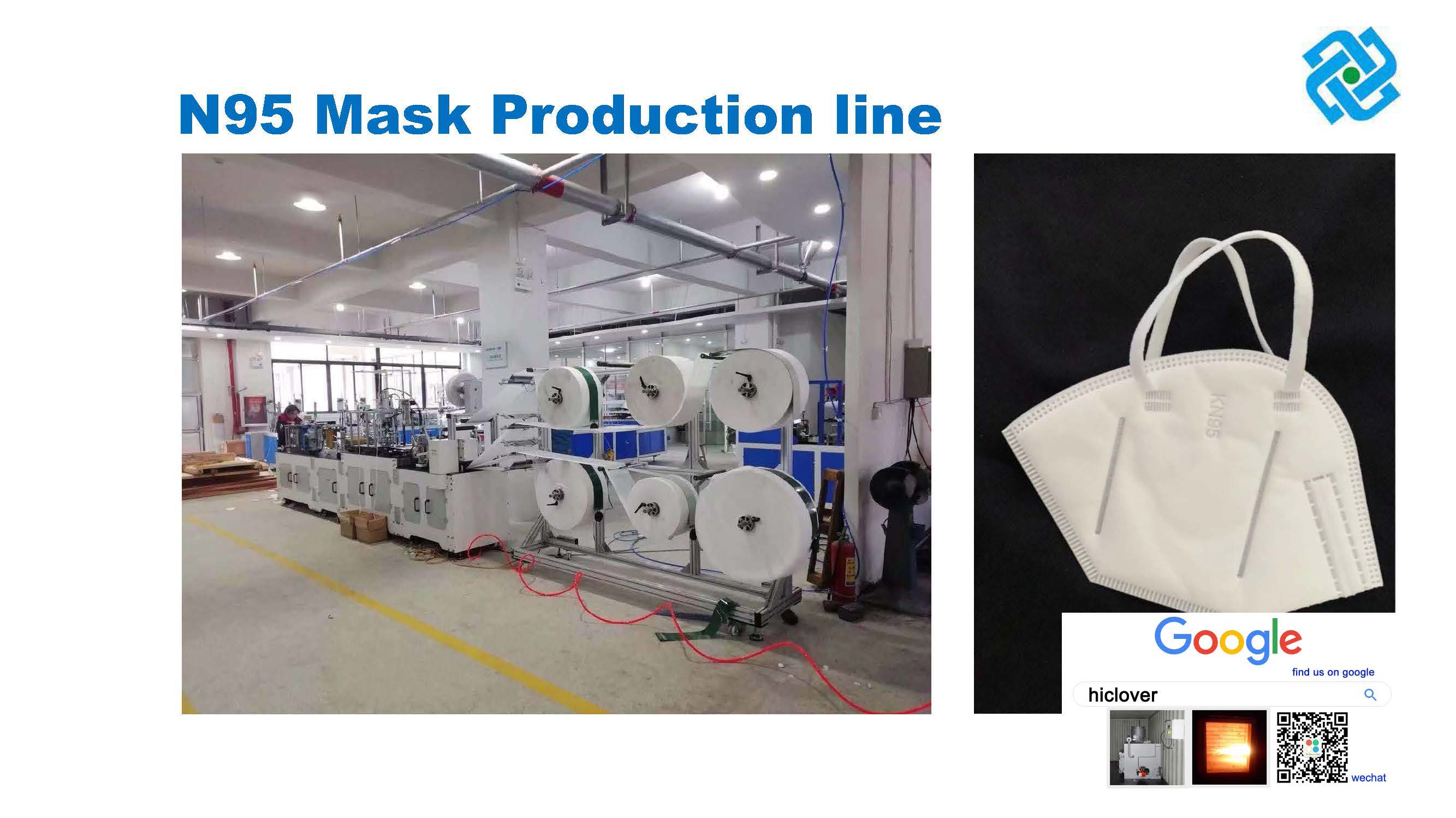

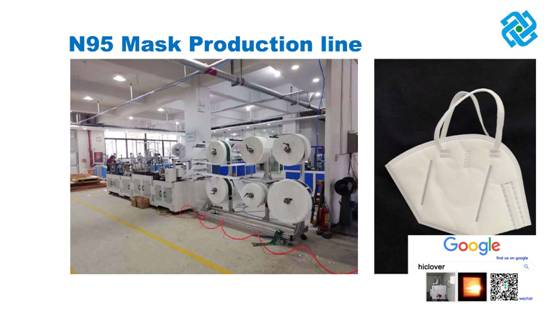

N95 Face Mask Machine Production Line

Melt blown Production Line



A.)Optional Capacity: 1600mm

Efficiency: 95-97%

FOB Term Price: USD per set

Price Valid: 5days.

Ave.60 Days ready for shipping.

In stock Price: USD per set





B.)Optional Capacity: 400mm

Efficiency: 40-50% .

FOB Term Price: USD per set

Price Valid: 5days.

Ave.20 Days ready for shipping.

Payment: TT 70% In advance, TT 30% before leave factory

Shipping: 1*20′ container per set, Ave. 2000Kgs.

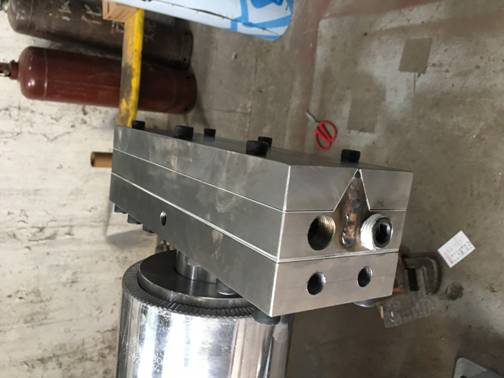

Main Parts: Extruder, mold, winder, oven, ultrasonic

Daily Capacity：100-150Kgs/24Hours

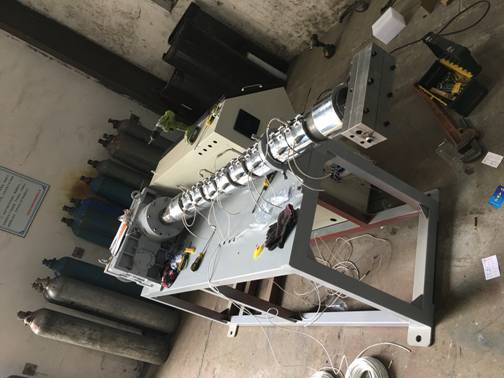

Screw extruder：100-150Kgs

Motor power: 15KW frequency conversion speed regulation
Reducer speed ratio: 1:10 or 1:16
Screw length to diameter ratio: 30: 1
Screw diameter: 50mm
Winding machine diameter: ￡ 630mm
Winding machine drive motor power: 0.55kw
Speed ratio of winder drive reducer (if any): 1:71
Air heater power: 15kw
Power of vacuum calciner: 12kw
The size of vacuum calciner: 500 × 300 × 200
Ultrasonic power: 1800, frequency 28kHZ

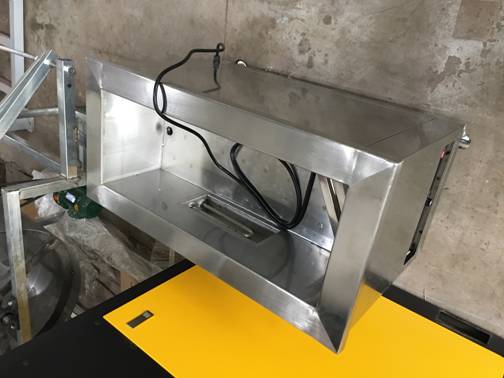

Ultrasonic sink size: 800 × 300 × 250







HICLOVER – Medical Environmental



Waste Incinerators
Medical Waste Incinerator
Pet Animal Cremation
Solid Waste Incinerator

Tel:  +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Nanjing Clover Medical Technology Co.,Ltd.



2020-04-20

N95 Face Mask Machine Production Line on Sale Now! $250,000USD per set

Posted on by admin
N95 Face Mask Machine Production Line on Sale Now! $250,000USD per set

N95 Face Mask Machine Production Line on Sale Now! $250,000USD per set

l Dimension(L*W*H): 1037*855*1780

l Power Supply 15.3kw mono phase

l Net Weight: approx.: 1500kg

HICLOVER – Medical Environmental



Waste Incinerators
Medical Waste Incinerator
Pet Animal Cremation
Solid Waste Incinerator

Tel:  +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Nanjing Clover Medical Technology Co.,Ltd.



2020-04-10

Three ply Melt Blown Breathing mask making machine

Posted on by admin
Zhangjiagang Tengxiang Machinery Co., Ltd.
Mobile: 0086-13962221749(whatsapp)
Wechat: chncheumg

Face Mask Machine for Coronavirus Disease COVID-19

平面口罩机参数：

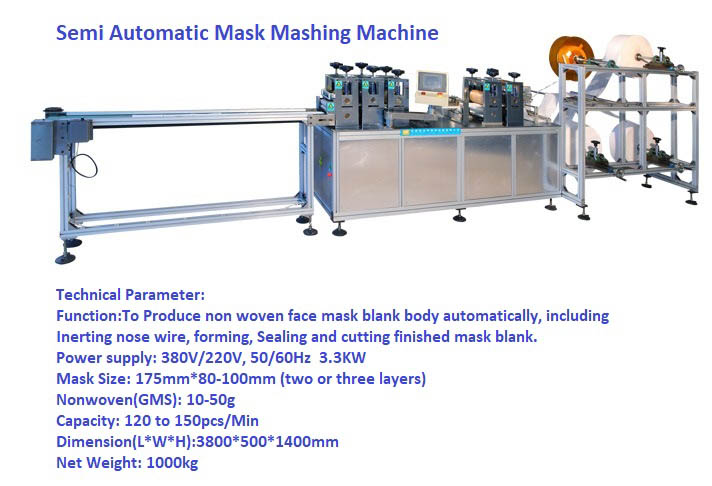

Semi-Automatic Mask Machine

l Power supply: 3.3KW mono phase

l Mask Size: 175mm*80-100mm (two or three layers)

l Nonwoven (GMS): 10-50g

l Capacity: 120 to 150pcs/min

l Dimension(L*W*H):3800mm*500mm*1400mm

l Net Weight: about 1000kg



焊接机参数：

Welding Machine

l Capacity: 5 to 10pcs/min

l Power supply: 8.5KW mono phase

l Compressed Air connection: 0.5 to 0.7Mpa

l Dimension(L*W*H): 900mm*650mm*1380mm

l Net weight: approx. 50kg



KN95口罩机参数：

N95 Mask Machine

l Capacity: 130 to 160pcs/min

l Dimension(L*W*H): 1037*855*1780

l Power Supply 15.3kw mono phase

l Net Weight: approx.: 1500kg

3ply Disposable Medical Breathing mask making machine
3ply Disposable Medical Mask making machine
3ply Disposable Medical Respirator making machine
3ply Disposable Medical Face mask making machine
3ply Disposable Medical Facial mask making machine
2layer Disposable Medical Breathing mask making machine
2layer Disposable Medical Mask making machine
2layer Disposable Medical Respirator making machine
2layer Disposable Medical Face mask making machine
2layer Disposable Medical Facial mask making machine
3layer Disposable Medical Breathing mask making machine
3layer Disposable Medical Mask making machine
3layer Disposable Medical Respirator making machine
3layer Disposable Medical Face mask making machine
3layer Disposable Medical Facial mask making machine
Two ply Disposable Medical Breathing mask making machine
Two ply Disposable Medical Mask making machine
Two ply Disposable Medical Respirator making machine
Two ply Disposable Medical Face mask making machine
Two ply Disposable Medical Facial mask making machine
Three ply Disposable Medical Breathing mask making machine
Three ply Disposable Medical Mask making machine
Three ply Disposable Medical Respirator making machine
Three ply Disposable Medical Face mask making machine
Three ply Disposable Medical Facial mask making machine
Two layer Disposable Medical Breathing mask making machine
Two layer Disposable Medical Mask making machine
Two layer Disposable Medical Respirator making machine
Two layer Disposable Medical Face mask making machine
Two layer Disposable Medical Facial mask making machine
Three layer Disposable Medical Breathing mask making machine
Three layer Disposable Medical Mask making machine
Three layer Disposable Medical Respirator making machine
Three layer Disposable Medical Face mask making machine
Three layer Disposable Medical Facial mask making machine
N95 Disposable Medical Breathing mask making machine
N95 Disposable Medical Mask making machine
N95 Disposable Medical Respirator making machine
N95 Disposable Medical Face mask making machine
N95 Disposable Medical Facial mask making machine
KN95 Disposable Medical Breathing mask making machine
KN95 Disposable Medical Mask making machine
KN95 Disposable Medical Respirator making machine
KN95 Disposable Medical Face mask making machine
KN95 Disposable Medical Facial mask making machine
FFP2 Disposable Medical Breathing mask making machine
FFP2 Disposable Medical Mask making machine
FFP2 Disposable Medical Respirator making machine
FFP2 Disposable Medical Face mask making machine
FFP2 Disposable Medical Facial mask making machine
2ply Disposable Medical Melt Blown Breathing mask making machine
2ply Disposable Medical Melt Blown Mask making machine
2ply Disposable Medical Melt Blown Respirator making machine
2ply Disposable Medical Melt Blown Face mask making machine
2ply Disposable Medical Melt Blown Facial mask making machine
3ply Disposable Medical Melt Blown Breathing mask making machine
3ply Disposable Medical Melt Blown Mask making machine
3ply Disposable Medical Melt Blown Respirator making machine
3ply Disposable Medical Melt Blown Face mask making machine
3ply Disposable Medical Melt Blown Facial mask making machine
2layer Disposable Medical Melt Blown Breathing mask making machine
2layer Disposable Medical Melt Blown Mask making machine
2layer Disposable Medical Melt Blown Respirator making machine
2layer Disposable Medical Melt Blown Face mask making machine
2layer Disposable Medical Melt Blown Facial mask making machine
3layer Disposable Medical Melt Blown Breathing mask making machine
3layer Disposable Medical Melt Blown Mask making machine
3layer Disposable Medical Melt Blown Respirator making machine
3layer Disposable Medical Melt Blown Face mask making machine
3layer Disposable Medical Melt Blown Facial mask making machine
Two ply Disposable Medical Melt Blown Breathing mask making machine
Two ply Disposable Medical Melt Blown Mask making machine
Two ply Disposable Medical Melt Blown Respirator making machine
Two ply Disposable Medical Melt Blown Face mask making machine
Two ply Disposable Medical Melt Blown Facial mask making machine
Three ply Disposable Medical Melt Blown Breathing mask making machine
Three ply Disposable Medical Melt Blown Mask making machine
Three ply Disposable Medical Melt Blown Respirator making machine
Three ply Disposable Medical Melt Blown Face mask making machine
Three ply Disposable Medical Melt Blown Facial mask making machine
Two layer Disposable Medical Melt Blown Breathing mask making machine
Two layer Disposable Medical Melt Blown Mask making machine
Two layer Disposable Medical Melt Blown Respirator making machine
Two layer Disposable Medical Melt Blown Face mask making machine
Two layer Disposable Medical Melt Blown Facial mask making machine
Three layer Disposable Medical Melt Blown Breathing mask making machine
Three layer Disposable Medical Melt Blown Mask making machine
Three layer Disposable Medical Melt Blown Respirator making machine
Three layer Disposable Medical Melt Blown Face mask making machine
Three layer Disposable Medical Melt Blown Facial mask making machine
N95 Disposable Medical Melt Blown Breathing mask making machine
N95 Disposable Medical Melt Blown Mask making machine
N95 Disposable Medical Melt Blown Respirator making machine
N95 Disposable Medical Melt Blown Face mask making machine
N95 Disposable Medical Melt Blown Facial mask making machine
KN95 Disposable Medical Melt Blown Breathing mask making machine
KN95 Disposable Medical Melt Blown Mask making machine
KN95 Disposable Medical Melt Blown Respirator making machine
KN95 Disposable Medical Melt Blown Face mask making machine
KN95 Disposable Medical Melt Blown Facial mask making machine
FFP2 Disposable Medical Melt Blown Breathing mask making machine
FFP2 Disposable Medical Melt Blown Mask making machine
FFP2 Disposable Medical Melt Blown Respirator making machine
FFP2 Disposable Medical Melt Blown Face mask making machine
FFP2 Disposable Medical Melt Blown Facial mask making machine

HICLOVER – Medical Environmental



Waste Incinerators
Medical Waste Incinerator
Pet Animal Cremation
Solid Waste Incinerator

Tel:  +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Nanjing Clover Medical Technology Co.,Ltd.



2020-04-06

Incinerator shipping

Posted on by admin
HICLOVER now offer a full range of containerized incineration systems, placing us at the forefront of the latest transportation and industrial trends. Containerization enables immediate waste management as the units are pre-assembled and pre-installed.
Containerization is the most feasible and viable option in contrast to the construction of on-site facilities and housing structures, eliminating the man power and costs involved. The system has the added benefit of total mobility (both local and international), and is ideal for military and civil camps and remote locations where infrastructure is scarce.


It features unique and advanced merits with compact size, high burning effect, reasonable burning technology, high degree of non-harm etc.It is an ideal choice for waste treatment of hospitals, hotels and various areas.

Features:

(1)   Gasifiedpyrolysis incineration is used for burning many kinds of waste.
(2)   Waste can be burned once everyday by gasified incineration.
(3)   Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust,dioxin etc.
(4)   Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.

(5)   Compact structure and small land occupation.

WWW.HICLOVER.COM｜Waste Incinerators ｜Auto Roll Air Filters
Nanjing Clover Medical Technology Co.,Ltd.

Tel:  +86-25-8461 0201

Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Items/Model TS10(PLC) TS20(PLC) TS30(PLC) TS50(PLC) TS100(PLC)
Burn Rate (Average) 10 kg/hour 20 kg/hour 30 kg/hour 50 kg/hour 100 kg/hour
Feed Capacity(Average) 20kg 40kg 60kg 100kg 200 kg
Control Mode PLC PLC PLC PLC PLC
Combustion Chamber 100L 210L 330L 560L 1200L
Internal Dimensions 50x50x40cm 65x65x50cm 75x75x60cm 100x80x70cm 120x100x100cm
Secondary Chamber 50L 110L 180L 280L 600L
Smoke Filter Chamber Yes Yes Yes Yes Yes
Feed Mode Manual Manual Manual Manual Manual
Voltage 220V 220V 220V 220V 220V
Power 0.5Kw 0.5Kw 0.5Kw 0.7Kw 0.7Kw
Oil Consumption (kg/hour) 5.4–12.6 7.8–16.3 10.2–20 12.1–24 14–28
Gas Consumption (m3/hour) 6.2–11.4 8–15.7 9.8–20 9.9–26.1 10–32.2
Temperature Monitor Yes Yes Yes Yes Yes
Temperature Protection Yes Yes Yes Yes Yes
Oil Tank 100L 100L 100L 100L 200L
Feed Door 30x30cm 45x40cm 55x50cm 70x55cm 80x60cm
Chimney 3Meter 3Meter 5Meter 5Meter 10Meter
Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
1st. Chamber Temperature 800℃–1000℃ 800℃–1000℃ 800℃–1000℃ 800℃–1000℃ 800℃–1000℃
2nd. Chamber Temperature 1000℃-1200℃ 1000℃-1200℃ 1000℃-1200℃ 1000℃-1200℃ 1000℃-1200℃
Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec.
Gross Weight 1500kg 2200kg 3000kg 4500kg 6000kg
External Dimensions 140x90x120cm 160x110x130cm 175x120x140cm 230x130x155cm 260x150x180cm

Hiclover mobile containerized incinerator

Posted on by admin

● Double Combustion Chamber

All waste incinerator design with double combustion chamber. High Temperature, Smoke Treatment，No black smoke, Environmentally friendly.
● Containerized Mobile Incinerator
The incinerator mounted in ISO Container before leave factory, free-installation, no incineration house build construction,movable by truck.
● Family Pet Dog&Cat Cremation
Special design with movable platform, combustion chamber material and custom made for pets crematory business.
● Installation and Commissioning
Clover’s engineers instal,train for most of the region and free-cost train in our factory.
